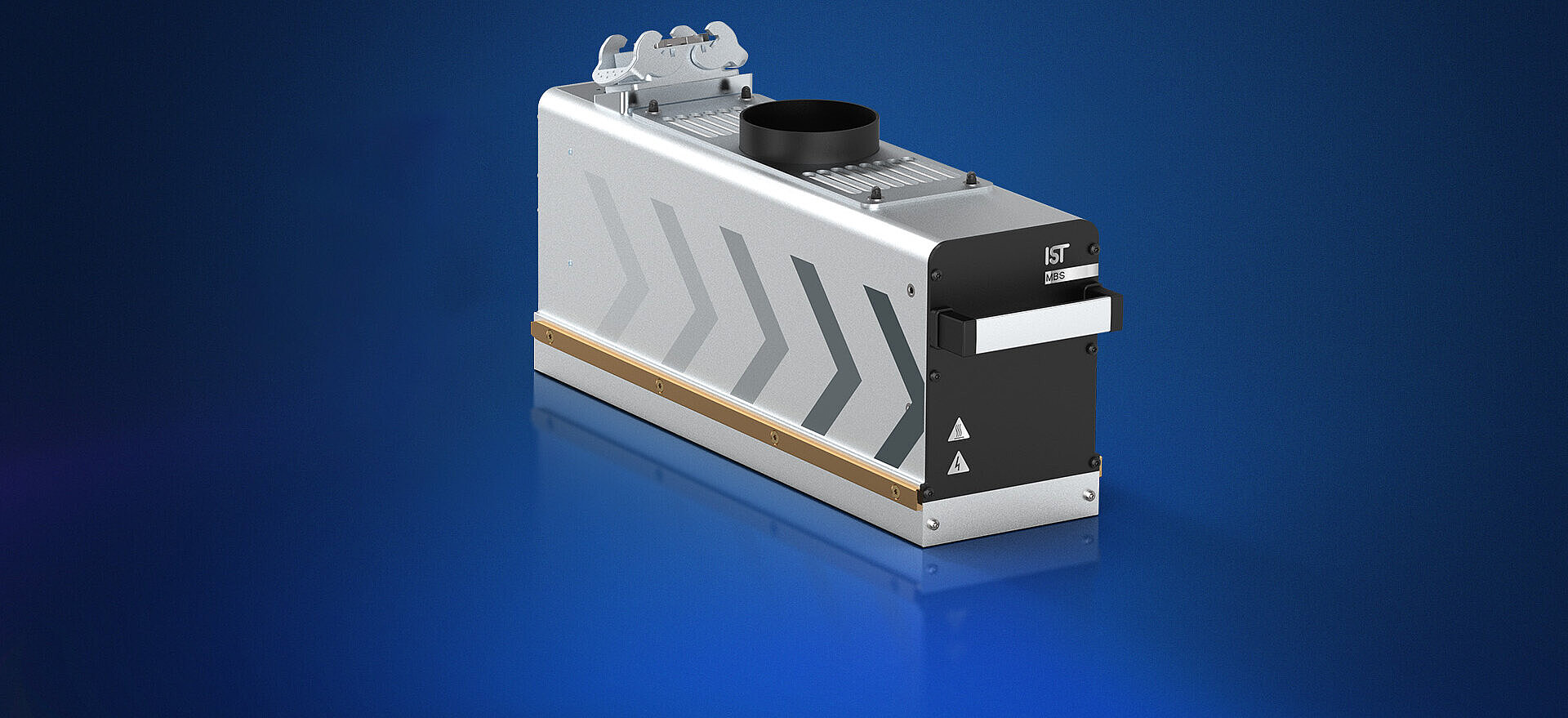

UV system MBS Li

The integrated URS technology provides optimum adaptation of the reflector geometry and the reflection properties to the production process. The URS reflectors only reflect the UV light, while the IR radiation is allowed to pass through to the air-cooled aluminium profile. These highly resistant reflectors boast an extremely long service life and optimum heat management.

The spectrum ranges from a machine-independent control system to complete integration of the control system into a higher-level machine control system, in which the output of the UV system can be linked to the machine speed.

The complete lack of water cooling allows rapid installation and reduces maintenance costs compared to water cooled technologies.

In standby mode, the reflector closes and shuts off the rays to the web completely.

Optimised air-flow and the use of a quartz-glass screen between lamp and substrate guarantees effective heatmanagent, allowing the UV system to be used with temperature-sensitive material.

The electronic power supply devices of the ELC-X series have been specially developed for operating UV lamps where space is at a premium. They optimise production safety in the print room and also reduce operating costs. They contain all the components for lamp ignition and process control. Electronic power control enables the UV lamps to be dimmed over a range of up to 30%. Voltage fluctuations are compensated and the high efficiency results in considerable energy savings. The compact construction means that smaller sizes of electrical supply can be used.

All components in the unit, including the lamp, reflector, pneumatic cylinder etc., are easily accessible. Lamps can be changed without tools.
